Alps Skeleton Hardware, designed for custom custom wood and graphite seat inserts

lemke LC skeleton sets

ALPS FORECAST SKELETON HARDWARE
This is a ForeCast exclusive design developed for spey rod use, due to its added diameter. It has since carved its place for perfect mating with Custom Wood Float Rod Seats . This model is CNC machined from 6061-T6 aluminum. The two locking nuts feature raised knurling for no slip tightening, and built in delrin washers to prevent the nuts from working loose. A gray woven graphite insert(optional) is also available from Alps to complete the seat if not cuting yourown wood insert. It also comes with a trim ring for the perfect finished look between the reel seat and fighting butt. Available in Shiny Black or Gun Smoke.

The RA8.5L2 can also be used as a spinning reel seat on spinning rods.RA8.5L2 SKELETON SERIES SPECS.

PART #	THREAD LENGTH (IN)	OD ID (IN)	ID (IN)	FRONT HOOD OD (IN)
RA8.5L2SKC-B	2.00	0.795	0.65	0.96
RA8.5L2SKC-SG	2.00	0.795	0.65	0.96

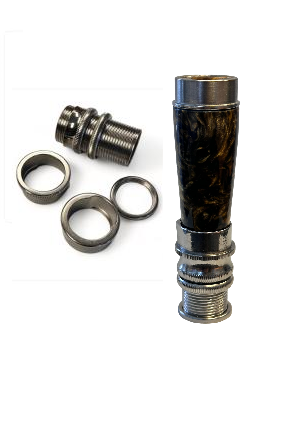

LEMKE SKELETON HARDWARE
Lemke skeleton seats are very well made in the USA and are robust but light. They are machined from aluminium alloy and anodised or nickel plated. The nickel finish is plated on aluminium alloy so they are just as light as the anodised seats. These will compliment your rod build with fine lines, jewel like finishes and beautiful looks. They enjoy a flanged and knurled reel seat retainer and heavy duty twin knurled locking rings. Intended for use with a rear grip or fighting butt, trim ring included (no end caps).
All metal hardware are CNC machined from aluminum and feature The two locking rings with raised knurling for no slip tightening, and built in delrin washers to prevent the locking rings from working loose. Lemke hardware as al exclusive design developed for spey rod use, due to its added diameter. It has since carved its place for perfect mating with Custom Wood Float Rod Seats

PART #	THREAD LENGTH (IN)	OD ID (IN)	ID (IN)	FRONT HOOD OD (IN)
LC 26	1.708	0.810	0.730	0.875
LC 25	1.708	0.740	0.660	0.807

�

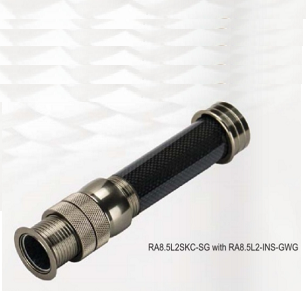

Forecast titanium smoke skeleton with woven graphite insert seat

Forecast woven graphite insert for alps skeleton hardware

ALPS FORECAST SEAT SET
ForeCast wooven graphite seat is a Graphite filled nylon construction in size 17 most commonly used for float rod building, paired up with Alps Forecast skeleton hardware and perfect mating for a spining style seat for float, spey, or spin rod building. Inside of barrel is ribbed for better bonding to shim or rod blank. The acompaniued hardware is the ForeCast RA8.5 which is CNC machined from 6061-T6 aluminum, and feature two locking nuts which each feature raised knurling for no slip tightening, and built in delrin washers to prevent the nuts from working loose. Hardware is available in either choice Shiny Black or Gun Smoke.

PART #	SEAT LENGTH (IN)	OD (IN)	ID (IN)	FRONT HOOD OD (IN)
RA8.5L2-SKC-G&RA8L2-INS-GWG	4.75	0.795	0.65	0.96
RA8.5L2-SKC-B&RA8L2-INS-GWG	4.75	0.795	0.65	0.96

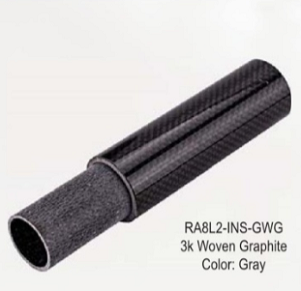

ALPS FORECAST GRAY WOVEN GRAPHITE BLANK
Graphite filled in nylon construction. Use with the RA8.5L Alps Forecast skeleton hardware to a complete seat assembly for float, spey, spin rod building.

**This unit is only a graphite seat insert and not a comlete reel seat. Must use the alps forecast skeleton hardware to make it a complete reel seat **

PART #	LENGTH (IN)	OD ID (IN)	ID (IN)
RA8L2-INS-GWG	4.25	.795	.655

�

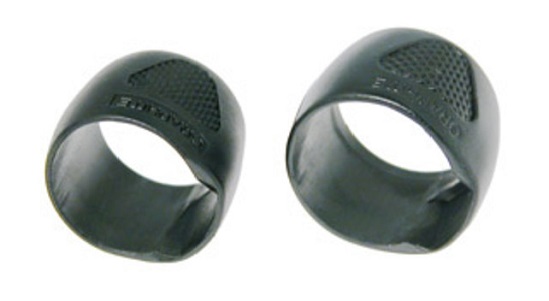

Graphite sliding rings

GRAPHITE SLIDING RINGS

Combine with Cork and Carbon fibre composite grips to make sliding ring float rod handle and similar style handles for other fishing applications

Size (ID) Conversion:

23.5mm = 0.926"
25.4mm = 1.000"

Note: You are ordering one slip ring. To order a set, please change the quantity in your shopping cart to 2.

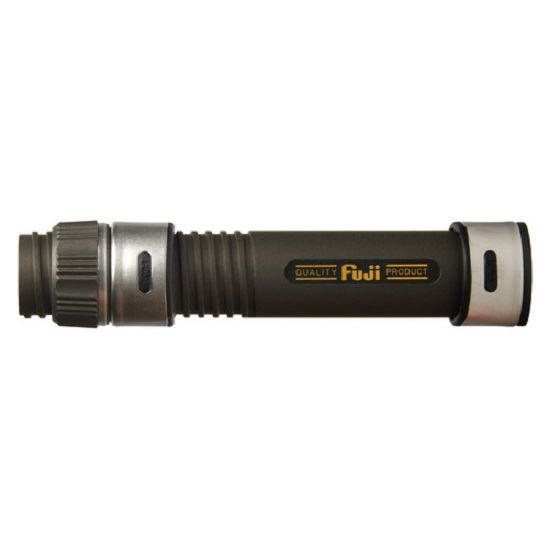

fusi deluxe spinning reel seat

Fuji deluxe graphite reel seat polished silver

FUJI DELUXE GRAPHITE SPINNING REEL SEAT -DPSD

Popular spinning seat with Fuji's exclusive padded metal hoods. | 7 Sizes | 2 Hood Colors

Model	Inside Diameter	Outside Diameter	Length
DPSD16*	0.610" (15.5 mm)	0.709" (18.0 mm)	4.134" (105 mm)
DPSD17	0.669" (17.0 mm)	0.787" (20.0 mm)	4.685" (119 mm)
DPSD18	0.709" (18.0 mm)	0.827" (21.0 mm)	4.882" (124 mm)
DPSD20	0.787" (20.0 mm)	0.906" (23.0 mm)	5.079" (129 mm)
DPSD22	0.866" (22.0 mm)	0.984" (25.0 mm)	5.079" (129 mm)
DPSD24	0.945" (24.0 mm)	1.063" (27.0 mm)	5.394" (137 mm)
DPSD26	1.024" (26.0 mm)	1.142" (29.0 mm)	5.394" (137 mm)

* Polished Silver - chrome look) (left lower pic)
