CENTERPIN ANGLING® CUSTOM FLOAT FISHING RODS & WORKS

ROD BUILDING COMPONENTS:


Fuji K-Frame_Single Foot Torzite Guides

Fuji

Fuji TKTTG Titanium Torzite Concept GuidesFuji Torzite_RingsFuji TKBT Titanium Torzite Concept Guides

FUJI TKLTG,KB,KT TORZITE TITANIUM K-SERIES CONCEPT GUIDES -new addition-

Titanium Concept Guides are a game changer in terms of great performance at lighter weights. Guide trains are lighter than anyone could have imagined just a few years ago. Although Fuji developed the concept with special attention to the “micro” craze, in the final review they realized the parameters were appropriate for any braided line and for conventional “non-micro” rods as well. Ultimately, K-Series Concept has impact far beyond micro rods and is an advance in the performance of any rod using braid and most rods using monofilament or fluorocarbon lines.

Fuji’s newest and certainly one of the most unique guides ever developed

TITANIUM PERFORMANCE AT STAINLESS PRICES

Fuji K-Frame Torzite Guides

Application: Freshwater, Light Saltwater

Color: Titanium

Material: Titanium

Ring Material: Torzite



MODEL: TKLTG
Size Height (mm)
5.5L
10.8
5.5M
14.6
6L
12.2
6M
18.4
7L
13.2
7M
19.4
8M
20.8
8H
26.8
10H
30.2
12H
31.8
16H
43.3
20H
50.8
25H
55.9
MODEL: TKTTG
Size Height (mm)
8
11.28
7
9.16











MODEL: TKBTG
Size Height (mm)
6
8.24
5.5
7.36
4.5
5.91
4
5.43









Model TKLTG Selection Model TKTTG Selection Model TKBTG Selection

Select Size

Select Size

Select Size



RSPG RECOIL Spinning Rod Guides

REC RSPG RECOIL SPINNING ROD GUIDES

SPECIFICATIONS

Application: Freshwater, Light Saltwater

Color: Chrome

Material: Nickel Titanium

Ring material: Wire

RECOIL Single Foot Spinning Rod Guides. Nickel titanium alloy.

Guide Size Actual OD

  • 40 - 29.74 mm
  • 30 - 23.06 mm
  • 25 - 18.26 mm
  • 20 - 13.85 mm
  • 16 - 10.46 mm
  • 12 - 8.74 mm
  • 10 - 7.16 mm
  • 8 - 5.28 mm
  • 8L - 5.28 mm
  • 7 - 4.7 mm
  • 6 - 3.91 mm
  • 5 - 2.74 mm
  • 4.5 - 2.16 mm
  • 4 - 1.76 mm

Select Size


RSPGB Black Pearl RECOIL Single Foot Spinning Rod Guides

REC RSPGB BLACK PEARL RECOIL SINGLE FOOT SPINNING ROD GUIDES

SPECIFICATIONS

Application: Freshwater, Light Saltwater

Color: Black

Material: Nickel Titanium

Ring material: Wire

REC COMPONENTS Black Pearl RECOIL Single Foot Spinning Rod Guides Nickel titanium alloy. The RECOIL "black pearl" is a PVD (Physical Vapor Deposition) coated RECOIL guide. This is a flexible vacuum coating process that not only increase surface micro hardness but they also provide a decorative appearance on the RECOIL guides.

Guide Size Actual OD

  • 40 - 33.25 mm
  • 30 - 26.05 mm
  • 25 - 21.37 mm
  • 20 - 16.63 mm
  • 16 - 12.80 mm
  • 12 - 10.56 mm
  • 10 - 9.00 mm
  • 8 - 6.80 mm (Height 12.41 mm)
  • 8L - 6.80 mm (Height 10.49 mm)
  • 7 - 6.03 mm
  • 6 - 4.98 mm
  • 5 - 3.77 mm
  • 4.5 - 3.27 mm
  • 4 - 2.85 mm

Select Size

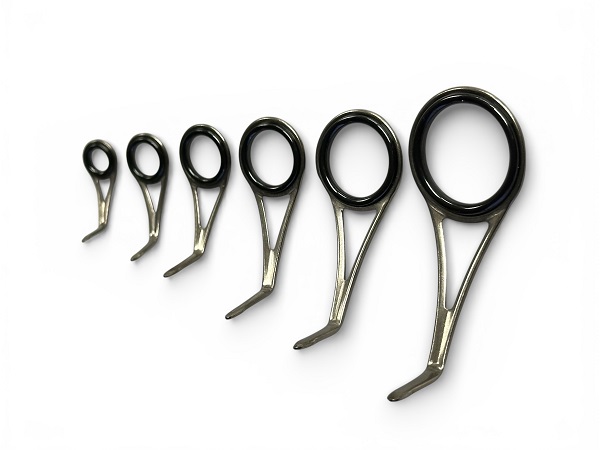

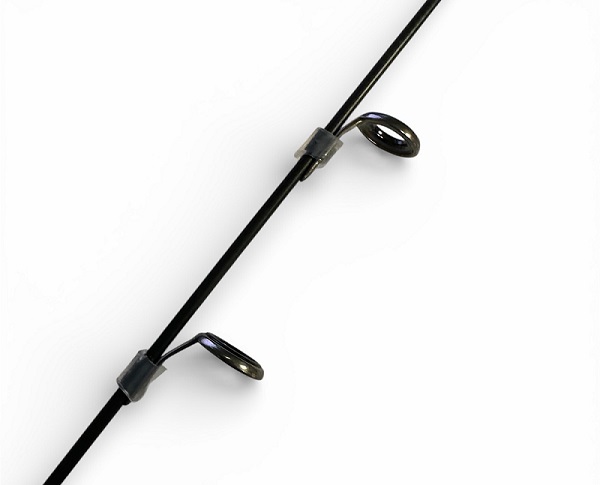

CAC TITANIUM Y-FRAME SiC RING FLOAT ROD GUIDES

Pure titanium frame guides. Super light, about 40% lighter then standard stainless steel guides. Corrosion proof in saltwater environments, super strong, yet flexible. Braid-proof via hard Silicone Carbide Rings. CAC Titanium Guides are a perfect fit for your ultimate float rod and other fresh or salt water builds. Polished gun smoke titanium frame, Sic Ring. Hooded Tip -Top Titanium SiC guides also availavble in the selection

CAC Titanium Frame SiC Guides
Select Size

alps titanim frame guides

alps logo

ALPS STAINLESS STEEL ZIRCONIA RING GUIDES - GOLD

Alps stainless steel zirconia ring guides. Super light, about 40% lighter then standard stainless steel guides. They are corrosion proof in saltwater environments and strong yet flexible. Alps titanium guides feature braid-proof via hard zirconium rings. Their light structure make these guides perfect for your ultimate float rod and other fresh or salt water build. Polished gun smoke frame.

Frame Type : Ti Chrome PVD over SS316

Material : 316 Stainless Steel

Ring Type : Ti Gold PVD / Zirconia

Ring Size Length (in.) Height (in.) Weight (oz.)
8 0.44 0.68 0.015
10 0.63 0.89 0.02
12 0.67 1.05 0.035
16 0.78 1.32 0.07
20 1.06 1.59 0.09
25 1.14 2.07 0.165
30 1.35 2.46 0.24

Select Size


alps titanim frame guides

alps logo

ALPS STAINLESS STEEL ZIRCONIA RING GUIDES

Alps stainless steel zirconia ring guides. Super light, about 40% lighter then standard stainless steel guides. They are corrosion proof in saltwater environments and strong yet flexible. Alps titanium guides feature braid-proof via hard zirconium rings. Their light structure make these guides perfect for your ultimate float rod and other fresh or salt water build. Polished gun smoke frame.

Frame Type : Ti Chrome PVD over SS316

Material : 316 Stainless Steel

Ring Type : Ti Blue PVD / Zirconia

Ring Size Length (in.) Height (in.) Weight (oz.)
6 0.37 0.36 0.003
7 0.39 0.40 0.009
8 0.42 0.53 0.014
10 0.43 0.63 0.024

Select Size


alps titanim frame guides

alps logo

ALPS STAINLESS STEEL ZIRCONIA RING GUIDES

Alps stainless steel zirconia ring guides. Super light, about 40% lighter then standard stainless steel guides. They are corrosion proof in saltwater environments and strong yet flexible. Alps titanium guides feature braid-proof via hard zirconium rings. Their light structure make these guides perfect for your ultimate float rod and other fresh or salt water build. Polished gun smoke frame.

Frame Type : Ti Chrome PVD over SS316

Material : 316 Stainless Steel

Ring Type : Ti Blue PVD / Zirconia

Ring Size Length (in.) Height (in.) Weight (oz.)
8 0.44 0.68 0.015
10 0.63 0.89 0.02
12 0.67 1.05 0.035
16 0.78 1.32 0.07
20 1.06 1.59 0.09
25 1.14 2.07 0.165
30 1.35 2.46 0.24

Select Size


alps titanim frame guides

alps logo

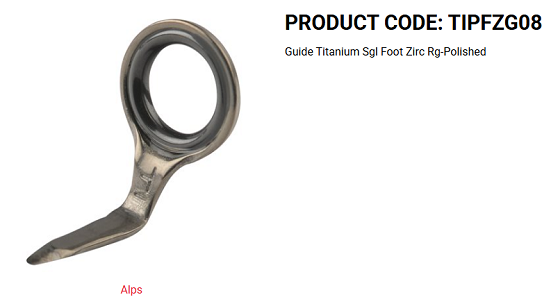

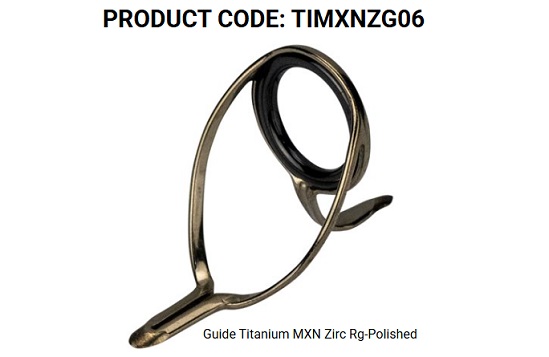

ALPS TITANIUM GUIDES

Alps Pure Titanium Frame Guides. Super light, about 40% lighter then standard stainless steel guides. They are corrosion proof in saltwater environments and strong yet flexible. Alps titanium guides feature braid-proof via hard zirconium rings. Their light structure make these guides perfect for your ultimate float rod and other fresh or salt water build. Polished gun smoke frame.

alps guide chart

Select Size

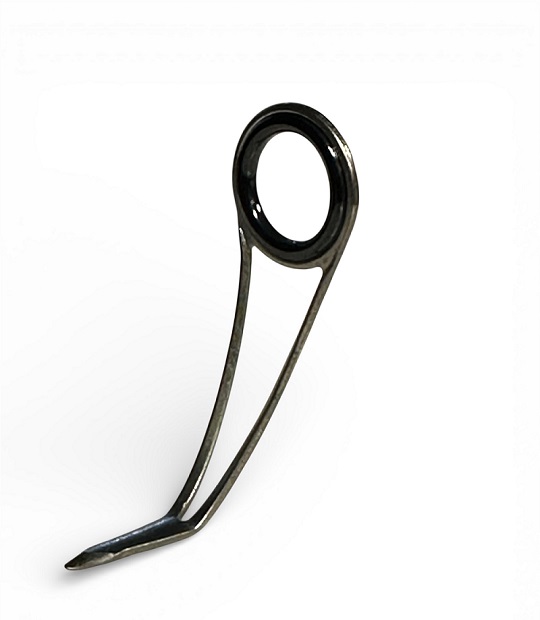

pac bay minima titanium guides

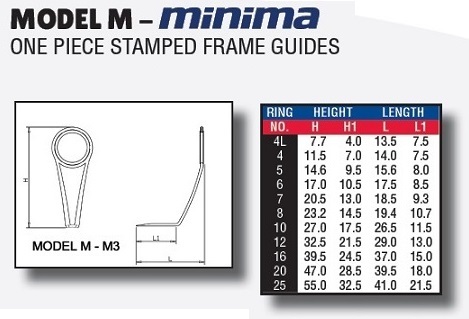

MINIMA TITANIUM SPINNING GUIDES

One piece stamped frame guides for ultra light and light action spinning rods. For ultra light and light action spinning rods Smaller ring helps to strip line from reel more efficiently for increase casting distance Lighter weight for increased sensitivity One-piece stamped stainless steel frame provides stiffness with light weight. Minima guides weigh 20-30% less than ceramic ring guides. Lighter weight guide set translates into faster rod action Greater sensitivity to vibration/strikes Faster blank return rate Larger guide I.D. reduces friction and drag on line while casting or retrieving

pac bay minima titanium guides

Select Size


TITANIUM TORZITE TKGTT TOP GUIDE

Fuji

Fuji Torzite_Rings

FUJI TITANIUM FRAME TORZITE RING MICRO TOP GUIDES

KG “Arowana” Tops are the culmination of Fuji’s expertise in designing Tangle Free guides and in sizes 6 and 7 they feature something no other top guide has…a flanged TORZITE® ring! This configuration means metal can never touch line and the smooth, fast surface of TORZITE® contacts your line in ANY fighting position. Be sure to add “F” to the stock number for size 6 and 7 tops.

Fuji Titanium Torzite Micro Concept Top Guides

Select Size


Rec top guides standard titanium wire aluminum tube



REC TITANIUM TOP GUIDES

RECOIL lightweight aluminum tube tip tops with Standard loop diameter. For spinning and casting rods.

Rec standard top guides
SKU RSCT-4
Classification Freshwater and Saltwater
Color Titanium
Fishing technique Casting and Spinning
Material Nickel Titanium
Ring material Wire
Tip size 4
SKU RSCTB-3.5
Classification Freshwater and Saltwater
Color Black Pearl
Fishing technique Casting and Spinning
Material Nickel Titanium
Ring material Wire
Tip size 3.5

Select Size


Cercoil typ top guides by REC



CERECOIL TIP TOP GIDES

CERECOIL Spinning and Casting tip top in Black Pearl PVD or Natural Titanium Finish finish. Ring size of 6, 7 or 8. Tube sizes range from 4.0 to 6.0.

rec ceramic recoil tip top guide
SKU CSCT-6-4.0
Color Titanium
SKU BCSCT-6-4.0
Color Black Titanium

Select Size


TITANIUM TORZITE TKGTT TOP GUIDE



CAC TITANIUM FRAME TANGLE FREE SiC RING TIP-TOP GUIDES

Pure Titanium Frame Guides. Super light, about 30-40% lighter then our 316 stainless steel guides. Corrosion proof in saltwater environments, super strong Braid-proof via hard Silicone Carbide Hardened Rings. CAC Titanium Guides are a perfect fit for your ultimate float rod and other fresh or salt water builds. Polished gun smoke titanium frame, Sic Ring.in a hood style Tip -Top.. A great match with our CAC titanium SiC guides above. Natural Titanium Gunsmoke Colour

Guide RingOD-TubeID:MM Tube Length:MM Weight:Grams Hight:MM
6mm-1.6 15.30 0.3 8.70
6mm-1.8 15.30 0.3 9.10
7mm-2.0 15.30 0.5 9.40
7mm-2.2 15.30 0.5 9.85
8mm-2.0 18.70 0.7 11.0
8mm-2.2 19.00 0.7 11.0

Select Size


TITANIUM TORZITE TKGTT TOP GUIDE



CAC STAINLESS STEEL FRAME TANGLE-FREE SiC RING TIP-TOP GUIDES

Pure 316 Stainless Steel frame guides. Super light at about 30-40% heavier then our Titanuim tip top guides. Corrosion proof in Fresh & saltwater environments, super strong Braid-proof via hard Silicone Carbide Hardened Rings(SiC). CAC Stainless Steel Guides are a perfect fit for your ultimate float rod and other fresh or salt water builds. Polished gun smoke titanium frame, Sic Ring in a hood style Tip -Top. Just line up and glue-it in. A great match to any stainless guide when building rods. Gunsmoke colour.

Guide RingOD-TubeID:MM Tube Length-MM Weight-Grams Hight-MM
8mm-1.8mm 15 0.9 13.30
8mm-2.0mm 15 0.9 13.30
8mm-2.2mm 15 0.9 13.30

Select Size
